FRAME
All New Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

FORK
Fox 38 Performance Elite, 160mm Travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender

REAR SHOCK
Fox Float DPX2, Performance, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount

RIMS
Marin, Double Wall Alloy, 29mm Inner, Welded Joint, Disc Specific, 32H, Tubeless Compatible

HUB REAR
Shimano HB-MT510B, 148x12mm, Centerlock, Microspline Freehub Body

HUB FRONT
Shimano HF-MT410B, 110x15mm, Centerlock

SPOKE
14g Black Stainless Steel

TIRES
Front: Maxxis Assegai 29x2.5”, MAXX TERRA, EXO+, Tubeless Compatible; Rear: Maxxis Assegai 29x2.5”, MAXX GRIP, DoubleDown, Tubeless Compatible

DERAILLEUR REAR
Shimano XT 12-Speed, SGS

DERAILLEUR FRONT
-

SHIFT LEVER
Shimano SLX 12-Speed, I-Spec EV

CRANKSET
FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing

BOTTOM BRACKET
MEGAEVO BB, 73mm BSA Threaded

CHAIN
KMC X-12 Silver and Black

CASSETTE
Shimano SLX M7100 Cassette, 12-Speed, 10-51T

BRAKE FRONT
Shimano SLX, 4-Piston Hydraulic Disc, 203mm Rotor

BRAKE REAR
Shimano SLX, 4-Piston Hydraulic Disc, 180mm Rotor

BRAKE LEVERS
Shimano SLX Hydraulic, I-Spec EV

HANDLEBAR
Deity Ridgeline, Stealth Finish, 35mm Clamp, 800mm Width

STEM
Race Face Affect R 35, 50mm

GRIPS
Marin Single Clamp Locking

HEADSET
FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST
X-Fusion Manic, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm, Shimano MT500 1x Lever, I-Spec EV

SADDLE
Marin Trail Speed Concept Pro

PEDALS
Not Included

EXTRAS
Bolt-On Thru-Axle, Downtube Protector

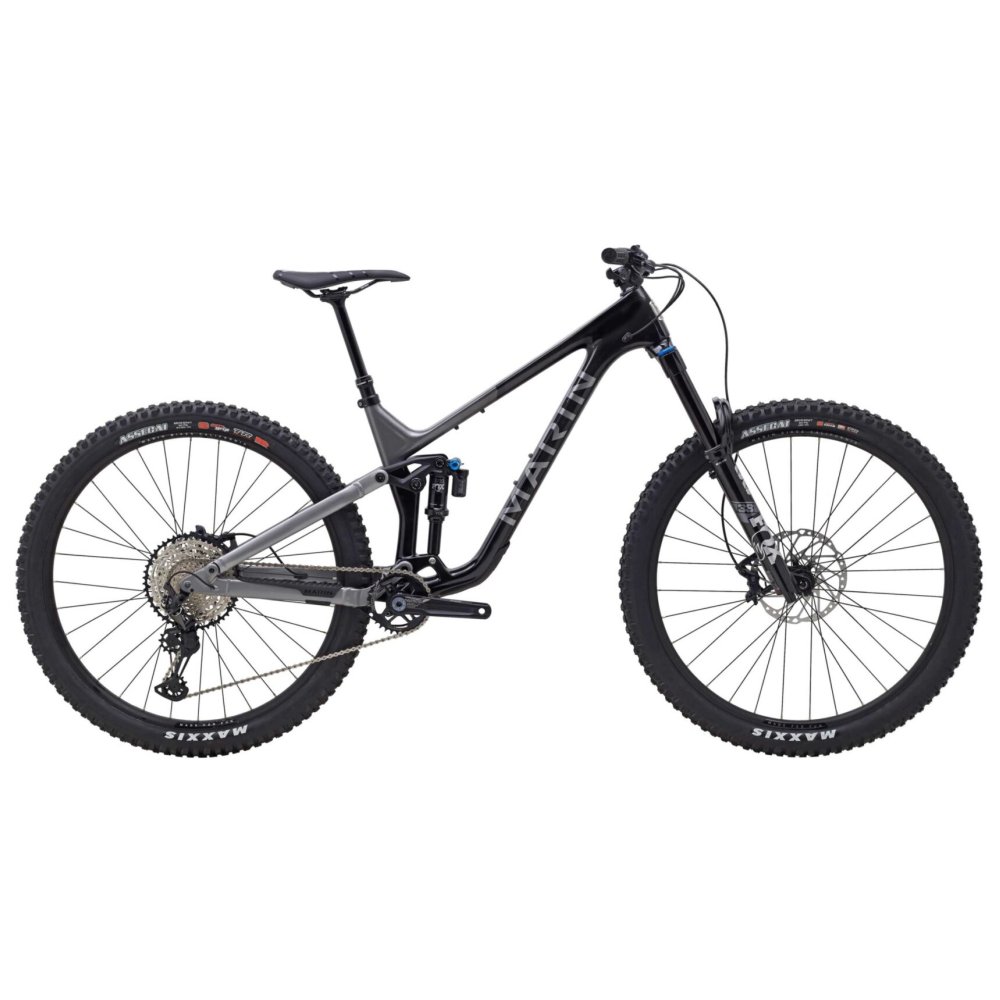

Велосипед Marin Alpine Trail Carbon 2 2022
