ENGINE
Yamaha, PW-ST System, 250W, 70 Nm, 25 km/h

DISPLAY
Yamaha, Multi Switch, 2.8" TFT, 16 functions

BATTERY
InTube, 500 Wh

FRAME FAMILY
Haibike, Trekking Yamaha i500/i400, Aluminium 6061

FORK
SR Suntour, NEX E25, Steel spring, Travel= 63 mm, Steel steerer tube 1 1/8" - 1 1/2" tapered, Quick release 100mm

CRANK ARM
Haibike, forged, Aluminium

BRAKE (FRONT)
Tektro, T275, 180 mm, 2-piston disc brake

BRAKE (REAR)
Tektro, T275, 160 mm, 2-piston disc brake

TUBE
Presta valve

RIM
Sch?rmann, Yak25, with eyelets, hollow rim, Aluminium

CLAMPING RING
Quick release, 34.9 mm

REAR DERAILLEUR
Shimano, Deore M5120

SHIFT LEVER
Shimano, Deore M4100, Trigger switch, 10 Speed

BOTTOM BRACKET
Integrated in the motor

SPROCKET
Shimano, M4100, 11 - 46 teeth

CHAIN
KMC, e10S

CHAINRING
Steel, 38 teeth

BRAKE LEVER
Tektro, T275, Aluminium

BRAKE DISC (FRONT)
Tektro, TR180

BRAKE DISC (REAR)
Tektro, TR160

TYRE
Continental, Contact Cruiser, 62-584, 27.5" x 2.4"

FRONT WHEEL HUB
Haibike Components, TheHub ++, 6-bolt standard

REAR WHEEL HUB
Haibike, TheHub ++, 6-bolt standard

SPOKES
Sapim, Leader, Black

HANDLEBAR
XLC, Topflat, 720 mm

GRIPS
XLC, Comfort bo3

STEM
XLC, Alu, A-head

HEADSET
Cane Creek, Viscoset, Aluminium

SADDLE
XLC, Trekking

SEAT POST
XLC, Aluminium, Patent, 31.6 mm

PEDALS
VP, E461, Aluminium, with Reflector

HEADLIGHT
Haibike, Skybeamer 150, 50 lm

REAR LIGHT
AXA, Blueline

DYNAMO
Via system battery

CARRIER
Massload, system carrier

FENDERS
SKS, Chromoplastics

STAND
Ursus, Mooi , Rear stand

PERMITTED TOTAL WEIGHT
130.0 kg

INCLUDES eCONNECT
No

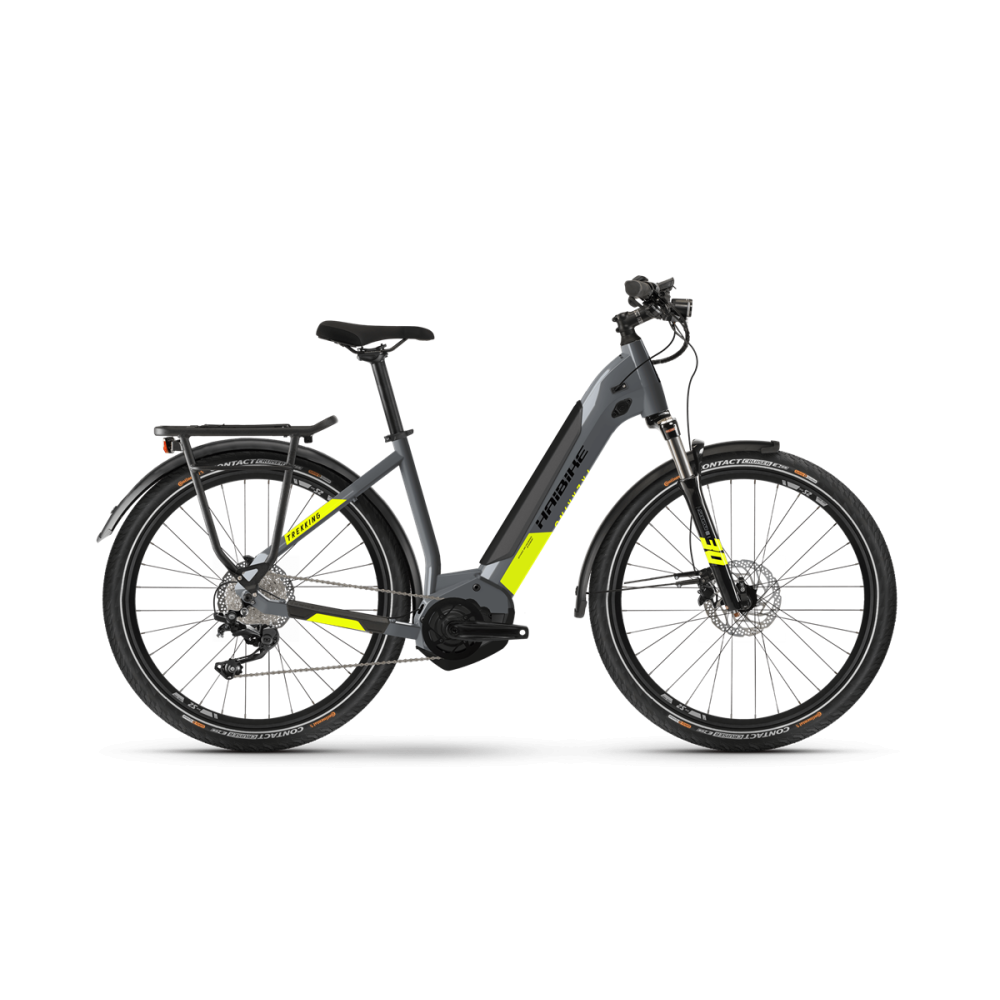

Электровелосипед Haibike Trekking 6 Low 2022
